AP-XC100
Unifitting
AP-XC100
Product Overview

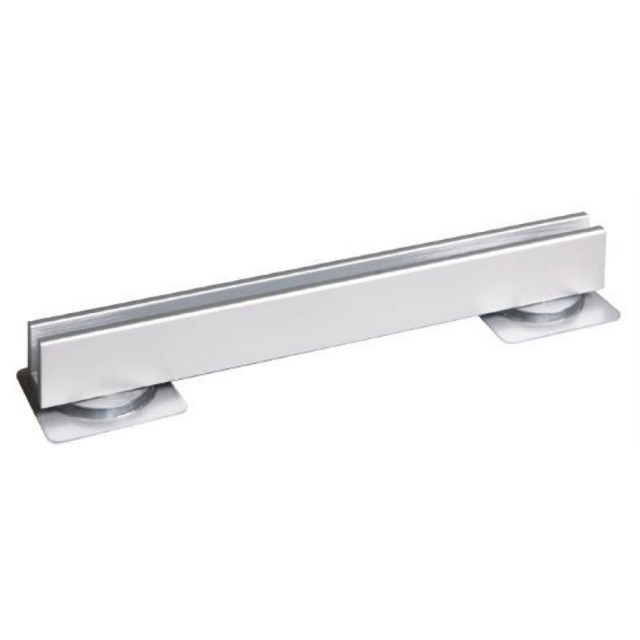

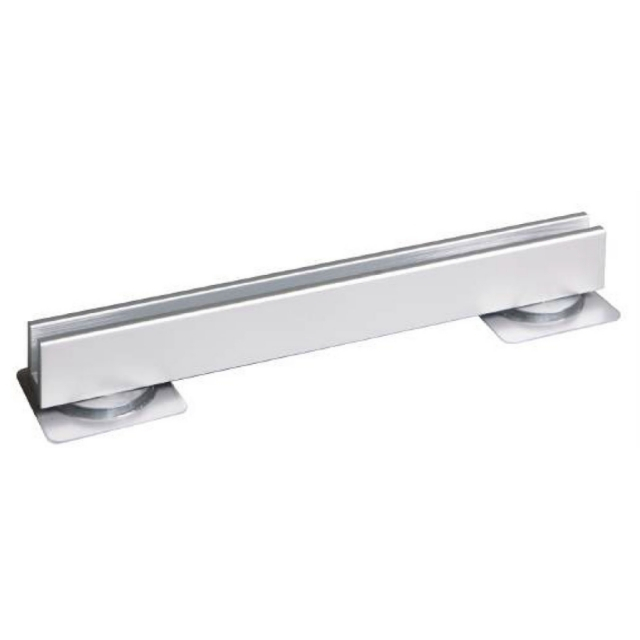

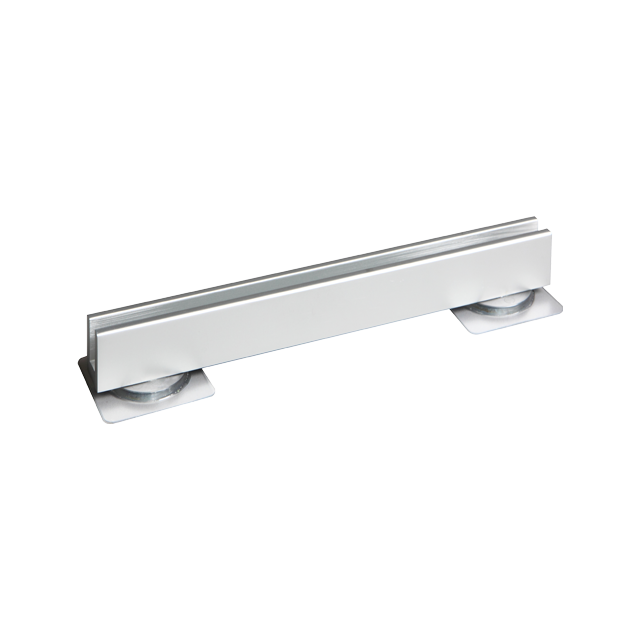

The AP-XC100 series is a high-quality, self-adhesive aluminum sign clamp designed to securely hold and display signage panels—without drilling or permanent fixtures. Featuring a slim-profile aluminum extrusion with integrated adhesive backing, this mounting solution is perfect for glass, tile, metal, or painted surfaces commonly found in elevators, lobbies, corridors, and restrooms. Available in three adhesive-length variants (80 mm, 120 mm, and 180 mm), each channel can accommodate panel thicknesses from 0 mm up to 8 mm, and two channels installed side by side can support up to 2 kg of sign weight.
Key Features
No-Drill, No-Punch Installation
Secure signs to glass, tile, metal, or smooth painted walls without damaging surfaces. Ideal for spaces where aesthetics and flexibility are critical.
Multiple Adhesive-Length Options
AP-XC100-80-ST (80 mm adhesive)
AP-XC100-120-ST (120 mm adhesive)
AP-XC100-180-ST (180 mm adhesive)
Choose shorter or longer adhesive backing depending on sign size, panel weight, and surface conditions.
Wide Panel Thickness Compatibility
0–8 mm panel depth accommodates acrylic, PVC, ABS, or aluminum-composite panels up to 8 mm thick (including tactile/Braille overlays).
Sleek, Minimalist Design
Anodized silver or optional custom powder-coated finishes (white, black, RAL colors) seamlessly blend with modern interior designs.
High Load Capacity
Two channels mounted side by side can support up to 2 kg (static load). Perfect for medium-sized Braille/tactile signs, room number plates, directional signs, and ADA-compliant wayfinding.
Quick Panel Replacement
Easily swap out or update signage: simply slide the panel in or out of the channel. No tools or additional hardware required.
Durable Materials
Made from 6063-T5 anodized aluminum for corrosion resistance, lightweight strength, and long-term stability. Backed by premium 3M or Nitto acrylic adhesive.
Applications

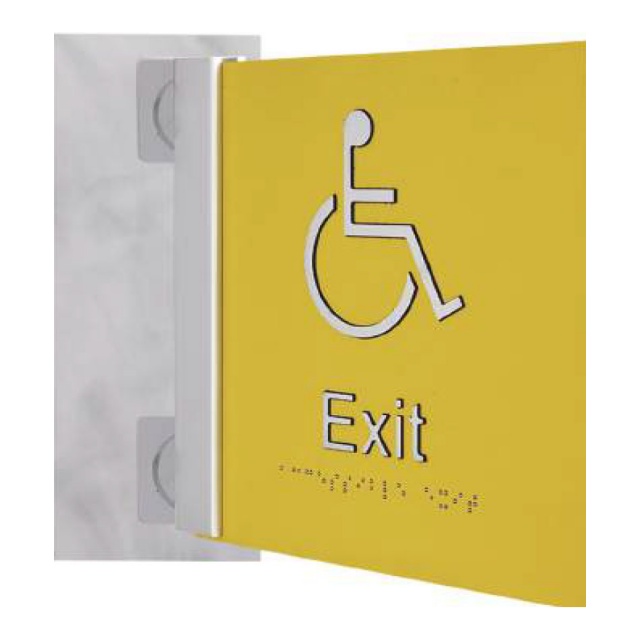

Elevator Lobby Floor Signs
Attach elevator floor-number plaques directly to glass or tile walls. Maintains a clean look and complies with ADA guidelines.
Restrooms & Accessible Facilities
Mount restroom, accessible toilet, or unisex signs without drilling. Ideal for ceramic tile, stone, or glass stall doors.
Conference Rooms & Office Directories
Display room names, conference schedules, or department directories using 4–6 mm acrylic or aluminum-composite plaques.
Commercial & Public Buildings
Use in shopping malls, hotels, hospitals, schools, or government buildings—anywhere that requires tactile signage or frequent sign updates.
Product Variants & Specifications
| Item No. | Sticky Glue Size | Panel Depth | Panel Thickness | Max Load(2Pcs) |
| AP-XC100-80-ST | 80mm | 22x15mm | 0-8mm | 2kg |
| AP-XC100-120-ST | 120mm | 22x15mm | 0-8mm | 2kg |
| AP-XC100-180-ST | 180mm | 22x15mm | 0-8mm | 2kg |
Get Aluminium Adhesive Sign Clamp |  |
