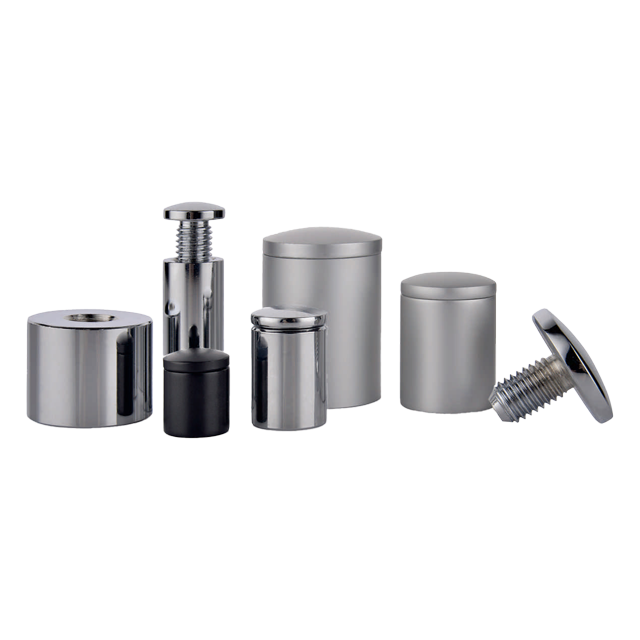

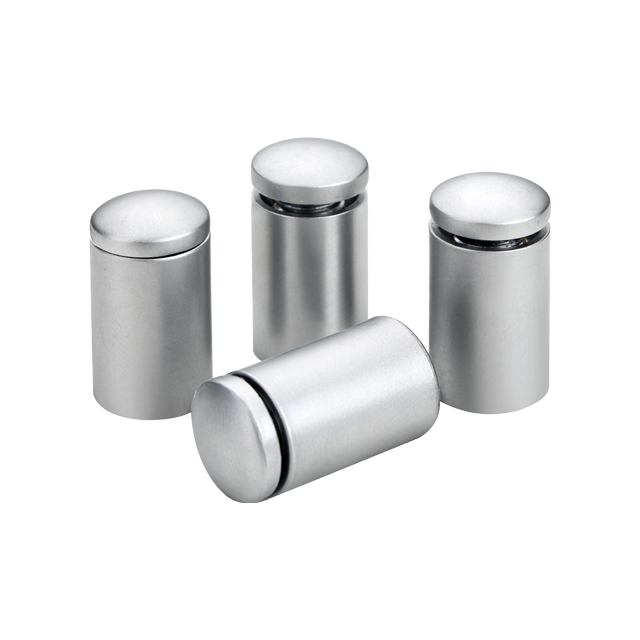

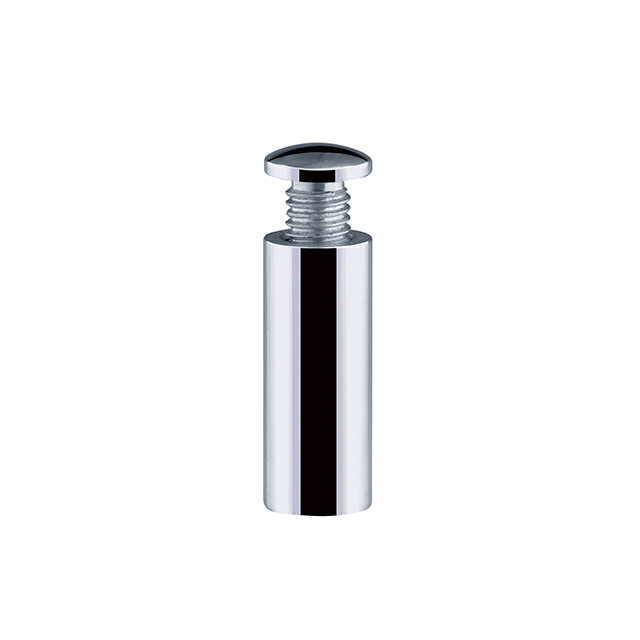

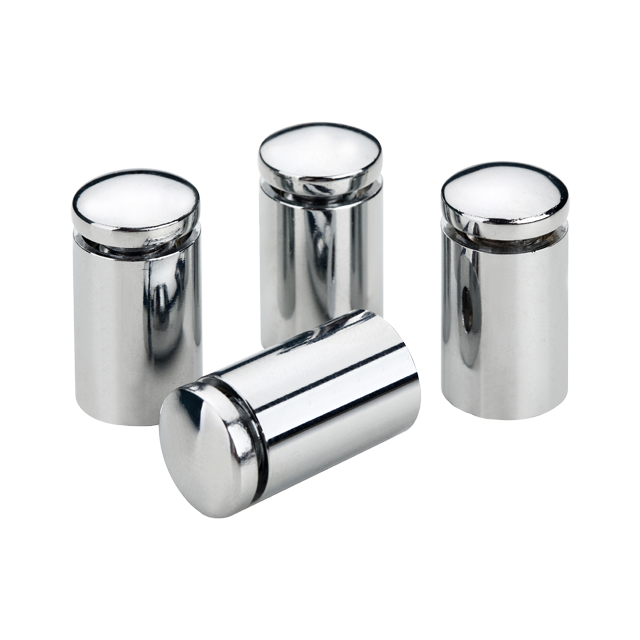

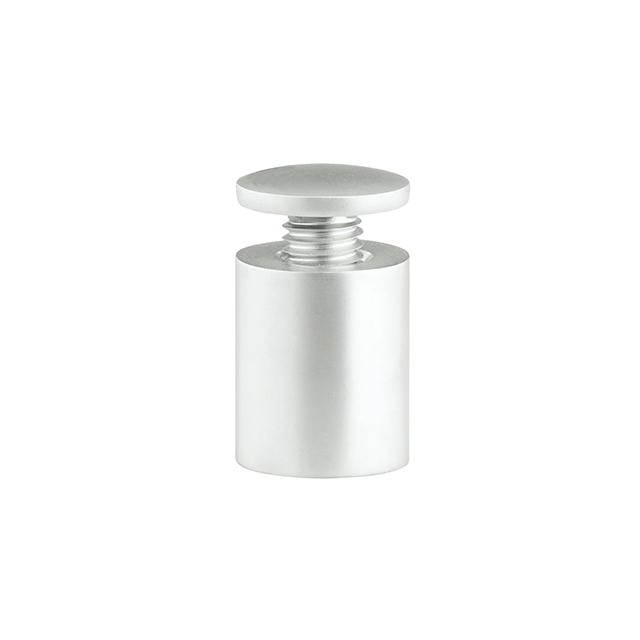

SA Series Aluminum Dome Top Sign Standoffs

Dome top sign standoffs is a elegant design standoffs made of aircraft-grade aluminum.

There are four finishes: satin, satin silver, polished mirror, polished chrome. These two finishes can be durable to most enviroments.

It is good choice to use these high quality standoffs to hold the glass, panel, aryclic and etc.
Application: hotel, shopping mall, company and etc.

  • SA-1616/SA-1625/SA-1640/SA-1925/SA-2525/SA-2540/SA-3225
  • UNIFITTING

Specification:


Item No.DiameterCap ThicknessSpacerScrew Pole SizeBottom Hole   SizeMax Panel   Thickness
SA-1616-ST/PM16mm4.5mm16mmDia.10mm*   L12mm5mm6mm
SA-1625-ST/PM16mm4.5mm25mmDia.10mm*   L21mm5mm12mm
SA-1640-ST/PM16mm4.5mm40mmDia.10mm*   L30mm5mm22mm
SA-1925-ST/PM19mm5mm25mmDia.12mm*   L19mm5mm10mm
SA-2525-ST/PM25mm5.5mm25mmDia.12mm*   L21mm5mm12mm
SA-2540-ST/PM25mm5.5mm40mmDia.12mm*   L30mm5mm22mm
SA-3225-ST/PM32mm7mm25mmDia.12mm*   L20mm5mm12mm

Optional simples blister packing: 4PCS standoffs

Optional blister packing: 4PCS standoffs with 4PCS screws and 4PCS anchors
