Sign Standoff: How to Choose the Right Type for Acrylic Signs

A sign standoff is a simple but important part of professional signage installation. It holds an acrylic, glass, metal, or other rigid panel away from the mounting surface, creating a clean visual gap between the sign and the wall or display structure.

For sign manufacturers, retail display suppliers, interior contractors, and commercial project buyers, choosing the right acrylic sign standoff is not simply about appearance. The material, diameter, spacer length, panel thickness, mounting hole, installation method, and wall condition all need to work together.

The right sign mounting hardware can make installation easier, improve the finished appearance, and provide a more suitable solution for different signage applications.

This guide explains the main factors to consider when selecting sign standoffs for acrylic signs, office signage, retail displays, directories, and other commercial applications.

What Is a Sign Standoff?

A sign standoff is a mounting component designed to secure a sign or rigid panel while creating a defined distance between the panel and its mounting surface.

Unlike a flat wall-mounted sign, a standoff-mounted sign appears slightly separated from the wall. This creates a dimensional appearance and can make the sign easier to read from different angles.

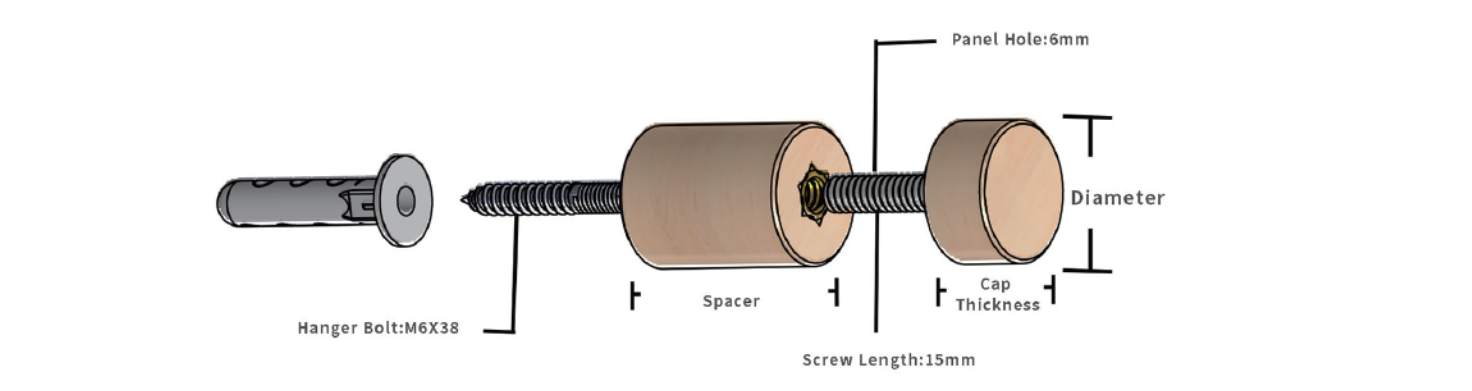

A typical sign standoff consists of several basic elements:

• Cap – the visible front component that secures the sign

• Spacer – creates the gap between the sign and the wall

• Screw or threaded stud – connects the sign and mounting surface

• Bottom hole – accommodates the fixing screw or mounting component

Depending on the design, a sign standoff may require a hole drilled through the sign panel. Other designs, such as side clamp standoffs, can hold the panel without drilling through it.

This is one of the first differences buyers should consider when selecting sign mounting hardware.

Sign Standoff vs. Other Sign Mounting Hardware

The terms sign standoff, sign bracket, sign clip, and sign clamp are sometimes used interchangeably, but they are not necessarily the same.

A sign standoff normally creates a fixed gap between the sign panel and the mounting surface.

A sign bracket generally provides structural support or holds a sign from a particular mounting position.

A sign clip or clamp can grip the edge or surface of a panel and may eliminate the need for drilled mounting holes.

For acrylic signs where a clean, dimensional wall-mounted appearance is required, a standoff is often a practical solution.

Aluminum vs. Plastic Sign Standoffs

Material is one of the most important decisions when choosing a sign standoff.

Different materials can provide different combinations of appearance, durability, weight, cost, and installation flexibility.

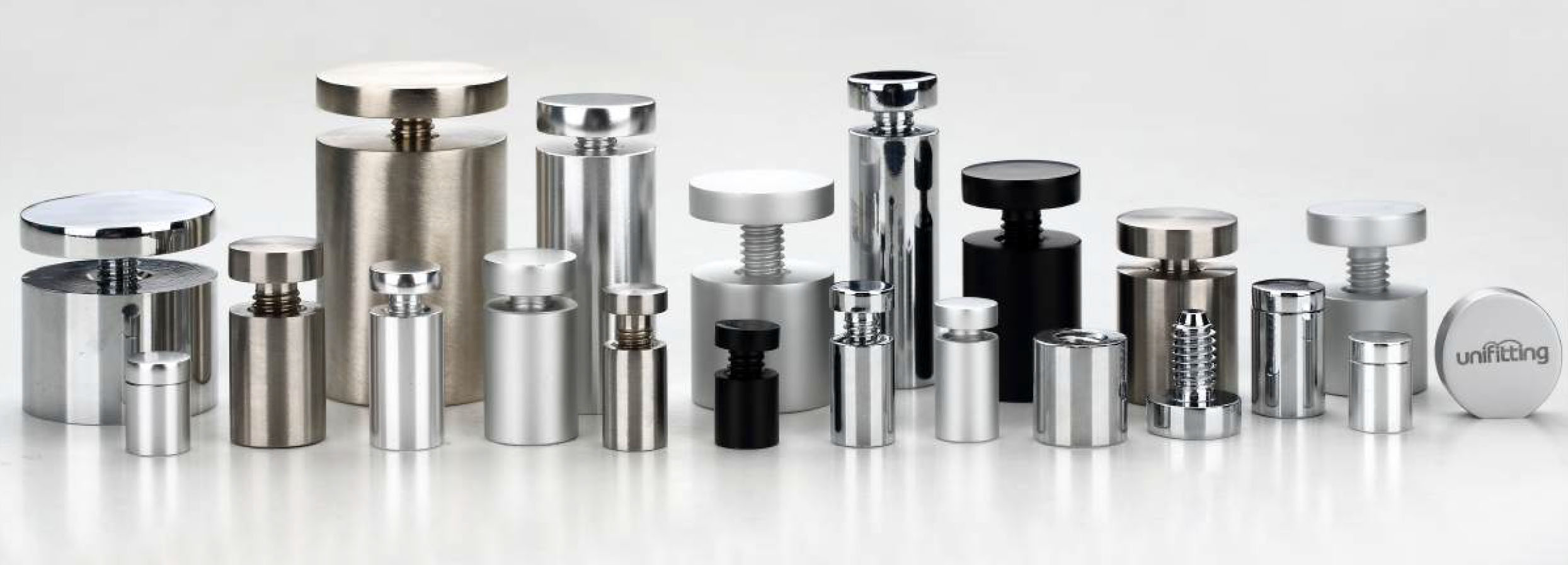

1. Aluminum Sign Standoffs

Aluminum is widely used for commercial signage because it combines a relatively low weight with a rigid metal construction and a range of available finishes.

For example, Unifitting's CA Series aluminum flat top sign standoffs are available in multiple diameters, spacer heights, finishes, and panel-thickness combinations. The series is designed for glass, acrylic, and other rigid panels used in applications such as hotels, shopping malls, and company signage.

Depending on the series, aluminum standoffs may be available with finishes such as satin, polished chrome, satin silver, black, or other customized colors.

Typical applications include:

• Corporate wall signs

• Office directories

• Lobby signs

• Retail signage

• Hotel signage

• Commercial interior projects

• Acrylic and glass display panels

Aluminum is particularly suitable when the visible hardware is intended to become part of the overall design.

2. Plastic Sign Standoffs

Plastic can be useful when a lighter and less visually prominent mounting solution is preferred.

Unifitting's V-600 Quick Snap Standoff, for example, uses PC/PE plastic and provides adhesive and screw-based installation options. Its invisible mounting concept is designed to create a floating appearance for indoor signage applications.

A plastic sign standoff can be particularly suitable when the objective is to minimize the visual presence of the mounting hardware.

The correct choice depends on the panel, installation environment, desired appearance, and project requirements rather than material alone.

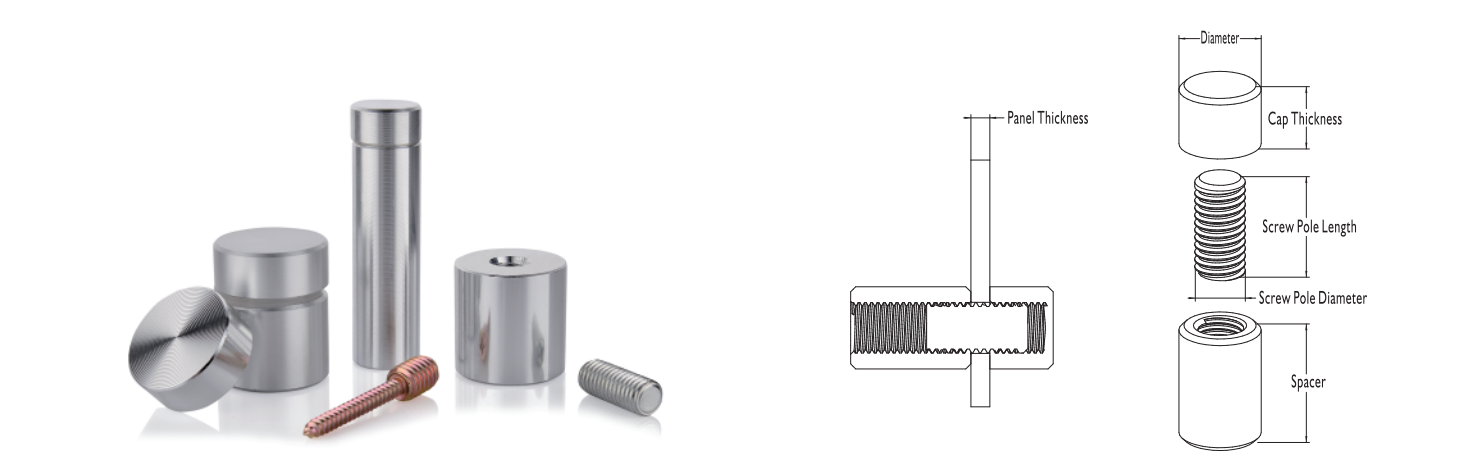

How to Choose a Sign Standoff Size

There is no single universal sign standoff size for every acrylic sign.

Four measurements should normally be checked before ordering:

1. Standoff diameter

2. Spacer length

3. Panel thickness

4. Mounting hole diameter

1. Standoff Diameter

The diameter determines how much of the front of the mounting hardware is visible.

Smaller diameters can create a more discreet appearance, while larger diameters may provide a stronger visual presence.

For example, Unifitting's CA Series includes diameters such as 13 mm, 15 mm, 19 mm, and 25 mm, with different spacer and panel-thickness combinations.

2. Spacer Length

The spacer determines the distance between the sign panel and the wall.

A shorter spacer creates a relatively close-to-wall appearance, while a longer spacer creates a more pronounced dimensional effect.

The appropriate wall gap depends on:

• Sign thickness

• Installation location

• Desired visual effect

• Screw length

• Wall condition

• Clearance requirements

3. Panel Thickness

The panel thickness must be compatible with the standoff design.

This is particularly important for acrylic and glass because the fixing system needs to hold the panel securely without applying inappropriate pressure.

Different standoff models support different panel thickness ranges. For example, CA Series models are specified for different maximum panel thicknesses depending on their diameter and spacer configuration.

4. Mounting Hole Diameter

If the sign standoff requires a drilled hole, the hole diameter must match the fixing system.

Do not select the hole size based only on the screw diameter. The complete standoff specification—including the bottom hole, screw or threaded stud, washer, and panel thickness—should be checked together.

For production projects, confirming these dimensions before drilling the acrylic panels can help avoid installation problems later.

Sign Standoffs for Acrylic Signs

Acrylic is widely used for office signs, retail graphics, directories, lobby signs, wayfinding panels, and other commercial displays.

However, acrylic requires careful handling during installation.

Should Acrylic Signs Be Pre-Drilled?

For conventional screw-mounted sign standoffs, the answer is generally yes.

The panel is normally prepared with mounting holes before installation. The hole diameter should match the selected standoff and fixing components.

However, not every sign mounting system requires drilled holes.

Side clamp designs can grip the edge or side of a panel instead.

For example, Unifitting's Aluminium Side Clamp Sign Standoff is designed for panels without drilling holes through the sign. The product is available in single-side and double-side configurations and supports panel thicknesses within the specified range.

This type of construction can be useful when:

• The panel should not be drilled

• Sign graphics may need to be replaced

• A flexible installation method is preferred

• The panel edge is accessible

• The project requires a clamp-based mounting solution

How Can Acrylic Cracking Be Reduced?

When installing acrylic signs, avoid excessive tightening of the fixing components.

Before production, check:

• Acrylic thickness

• Hole diameter

• Hole position

• Distance from the panel edge

• Standoff specification

• Screw length

• Washer requirements

For larger projects, it is also useful to test one complete mounting assembly before starting mass production.

The goal is not simply to find a standoff that fits the panel. The complete mounting system should be compatible with the panel material and installation method.

Wall-Mounted vs. Tabletop Sign Standoffs

Not every sign is installed on a wall.

The mounting environment changes the type of sign standoff required.

1. Wall-Mounted Sign Standoffs

Wall-mounted standoffs are commonly used for:

• Office signs

• Lobby signage

• Company logos

• Building directories

• Wayfinding systems

• Retail wall graphics

• Hotel signage

• Information panels

The sign is typically fixed at several points to create a stable and visually balanced installation.

For architectural applications, aluminum or stainless-steel standoffs can provide a more substantial visual appearance.

Unifitting's stainless steel SS Series, for example, is designed as a flat-top wall-mounted standoff and uses 304 stainless steel, with specifications covering different diameters, spacer lengths, hole sizes, and panel thicknesses.

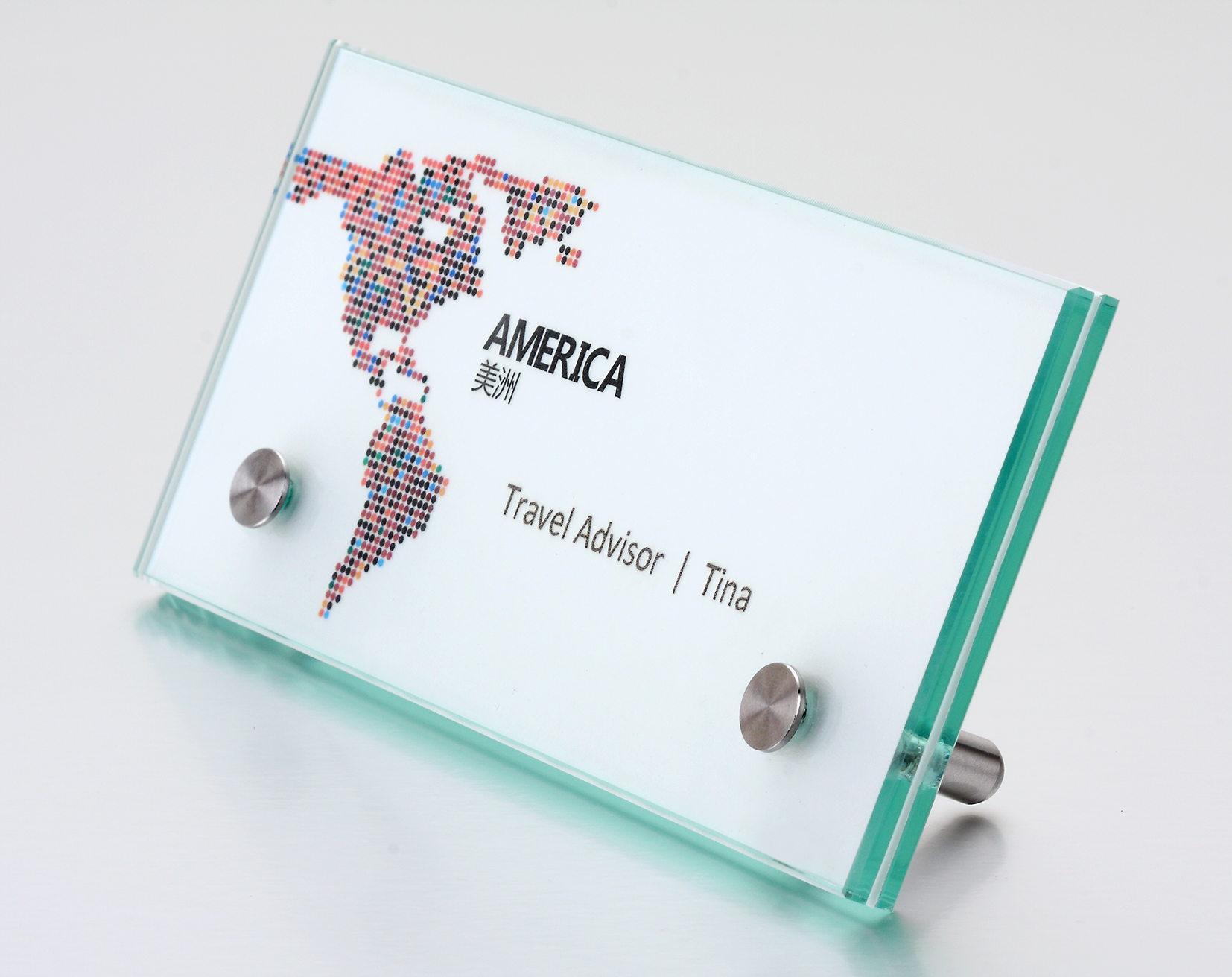

2. Tabletop Sign Standoffs

Tabletop signage has different requirements because the sign needs to remain stable without wall fixing.

Typical applications include:

• Retail price information

• Product information cards

• Reception desk signs

• Restaurant displays

• Exhibition displays

• Countertop promotional signage

• Showroom information panels

Unifitting's Table Top Aluminium Sign Standoff is designed for tabletop applications and uses a compact aluminum construction. The listed CA-1050D model has a 10 mm diameter and 50 mm spacer.

For tabletop applications, stability, footprint, sign orientation, and installation convenience should be considered alongside appearance.

Choosing Between Screw Cap, Invisible and Side Clamp Standoffs

Different sign projects can require different mounting structures.

1. Traditional Screw Cap Standoff

This is one of the most recognizable sign mounting methods.

The sign is drilled and secured between the standoff components.

Suitable for:

• Acrylic signs

• Glass signs

• Office signage

• Corporate branding

• Retail signage

It provides a clear dimensional effect and makes the mounting points visible as part of the sign design.

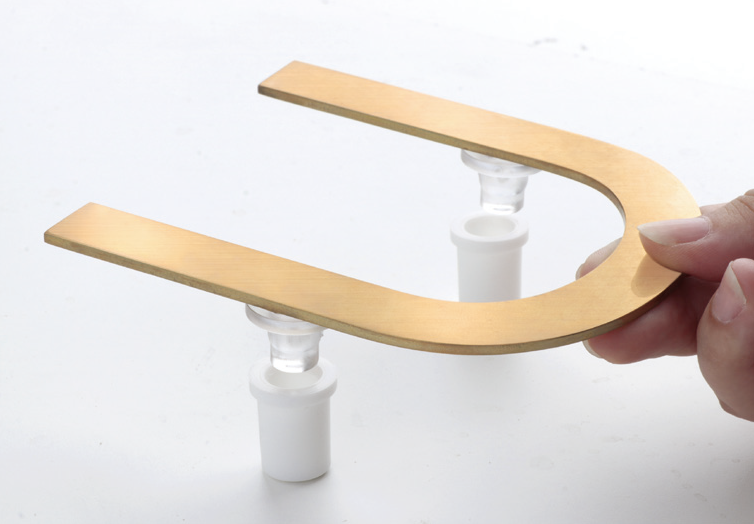

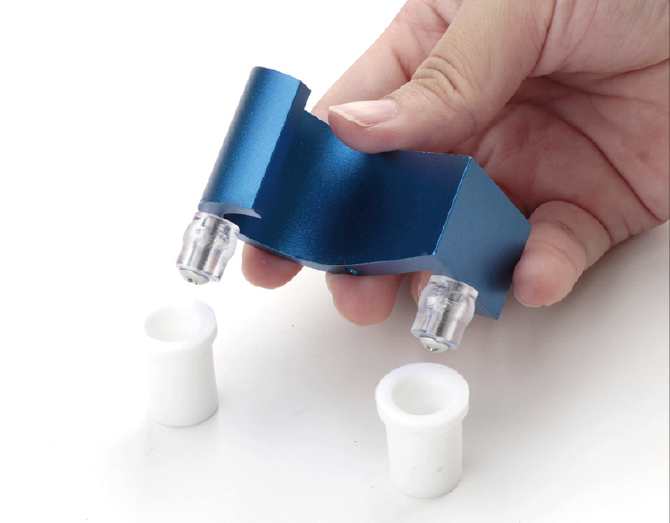

2. Quick Snap or Invisible Standoff

An invisible standoff is designed to reduce the visual presence of the mounting hardware.

Unifitting's V-600 Quick Snap Standoff is a PC/PE plastic design that supports adhesive or screw-based installation and is intended to create a floating effect for indoor signage.

This approach can be useful for:

• Minimalist office signage

• Interior branding

• Gallery-style displays

• Reception areas

• Retail interiors

3. Side Clamp Standoff

Side clamp systems can hold the sign without requiring a hole through the panel.

This can be particularly useful for acrylic panels where drilling is undesirable.

Unifitting's aluminum side clamp products include designs that do not require drilling holes in the panel, with options for different panel thicknesses and customized specifications.

Sign Standoff Installation: What Should You Check First?

Before installing a sign standoff system, confirm the complete installation conditions rather than looking at the standoff alone.

Check the Sign Panel

Confirm:

• Material

• Thickness

• Dimensions

• Weight

• Number of mounting points

• Required hole diameter

Check the Mounting Surface

The wall material is equally important.

Common substrates include:

• Concrete

• Brick

• Drywall

• Wood

• Metal panels

• Furniture panels

The anchor or fixing method should be selected according to the actual mounting surface.

Check Screw and Thread Compatibility

The screw length and thread should match the standoff and wall fixing system.

A screw that is too short may not provide sufficient engagement. A screw that is too long may interfere with the installation or damage the mounting surface.

Use a Positioning Tool for Repeated Installations

For projects with multiple standoffs, accurate positioning can save installation time.

Unifitting also offers a plastic locator designed to help position sign standoffs during installation, with versions corresponding to different bottom-hole diameters.

This can be especially useful for repeated signage installations where consistent hole positioning is important.

Custom Sign Standoffs for Display Projects

Standard sign standoffs cover many common applications, but commercial signage projects sometimes require non-standard specifications.

A custom requirement may involve:

• Special diameter

• Different spacer length

• Custom panel thickness

• Special mounting method

• Custom color

• Surface finish

• Private-label packaging

• Project-specific accessories

• OEM/ODM production

For example, Unifitting's aluminum side clamp products indicate that customized colors can be ordered by MOQ, while some C Series designs also support customized specifications.

For B2B buyers, it is therefore useful to provide the complete application information when requesting a quotation rather than asking only for a unit price.

What B2B Buyers Should Confirm Before Ordering

For a commercial signage project, the following information can help a manufacturer recommend the appropriate sign mounting hardware more efficiently:

For larger projects, buyers should also confirm MOQ, sample availability, production lead time, packaging requirements, and customization options before placing the bulk order.

Frequently Asked Questions About Sign Standoffs

1. What size sign standoff do I need?

The required size depends on the sign panel thickness, mounting hole diameter, desired wall gap, panel dimensions, and installation method. Check the complete standoff specification rather than selecting a size based only on diameter.

2. Can sign standoffs be used for acrylic panels?

Yes. Sign standoffs are commonly used with acrylic panels, provided that the standoff's panel-thickness range, hole size, fixing method, and installation requirements are compatible with the acrylic panel.

3. Are plastic sign standoffs durable?

Plastic sign standoffs can be suitable for many indoor signage applications. The appropriate material and product specification depend on the application and required installation method. Unifitting's V-600 series, for example, uses PC/PE plastic and is designed for indoor signage applications.

4. Do acrylic signs need holes for standoffs?

Not always. Traditional screw-mounted standoffs normally require drilled holes, while certain side clamp and adhesive/invisible mounting systems can be installed without drilling through the panel.

5. Can sign standoffs be customized?

Depending on the product, customization may include dimensions, colors, finishes, specifications, or packaging. Custom requirements should be confirmed with the manufacturer based on the project quantity and application.

Choose the Right Sign Standoff for Your Application

The best sign standoff is not necessarily the largest, strongest, or most visually prominent option. It is the one that matches the sign panel, installation surface, required wall gap, mounting method, and overall design.

For acrylic signs and commercial display projects, the selection process should start with a few practical questions:

What is the panel material?
How thick is the panel?
Does it need pre-drilled holes?
How much wall gap is required?
Is the sign wall-mounted or tabletop?
What finish and appearance are required?
How many units are needed?

Unifitting provides different sign mounting solutions, including aluminum sign standoffs, plastic invisible standoffs, tabletop sign standoffs, side clamp designs, and cable & rod display systems.

For specific project requirements, you can also explore:

• Quick Snap Standoffs V-600 Invisible Sign Standoff – PC/PE Plastic Series

• Table Top Side Clamp Sign Standoff

• Table Top Aluminium Sign Standoff

• Rod Shelf System

Send us your panel material, thickness, hole diameter, installation method and quantity to get a suitable sign standoff recommendation.
