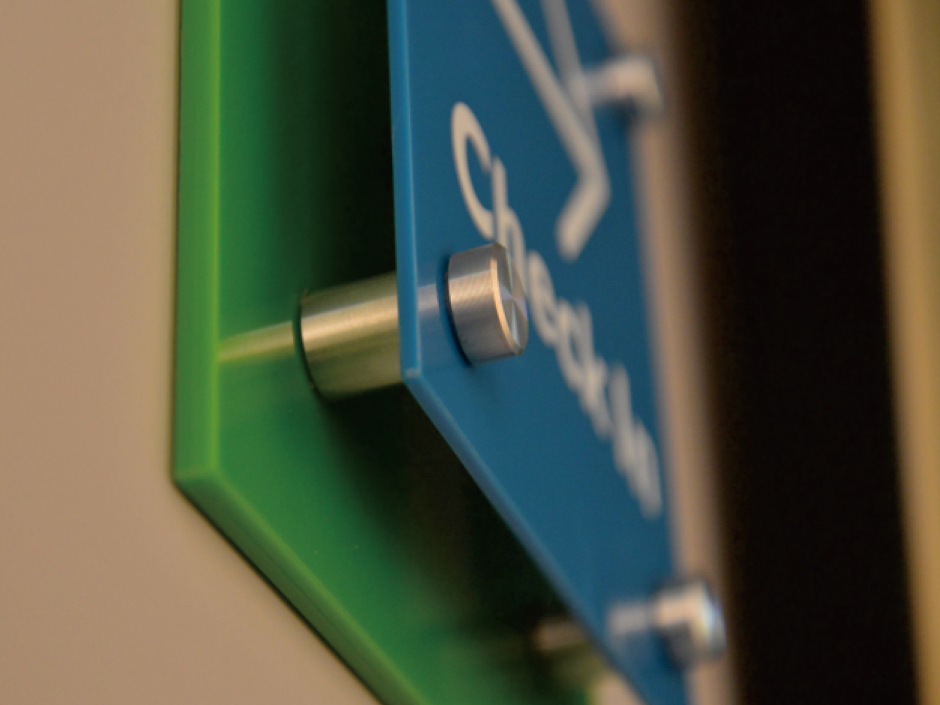

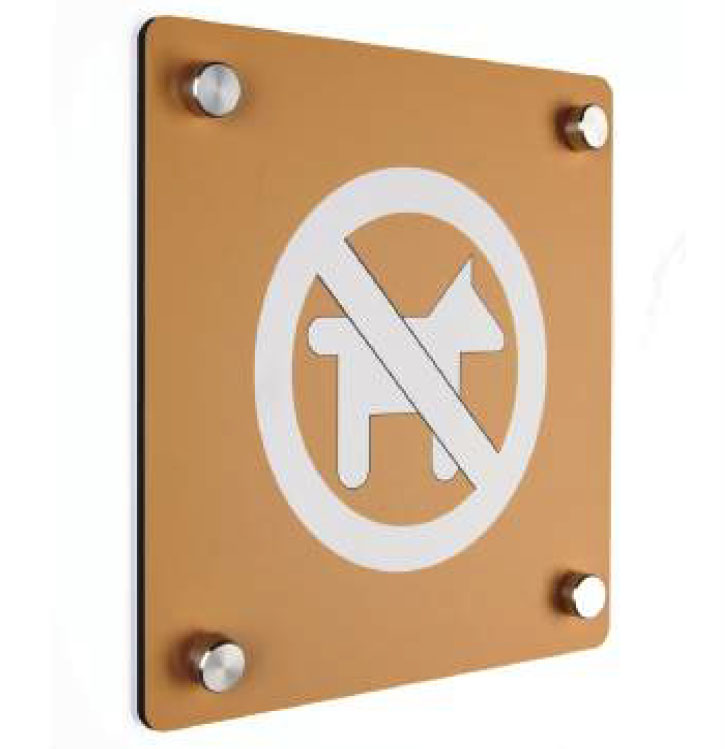

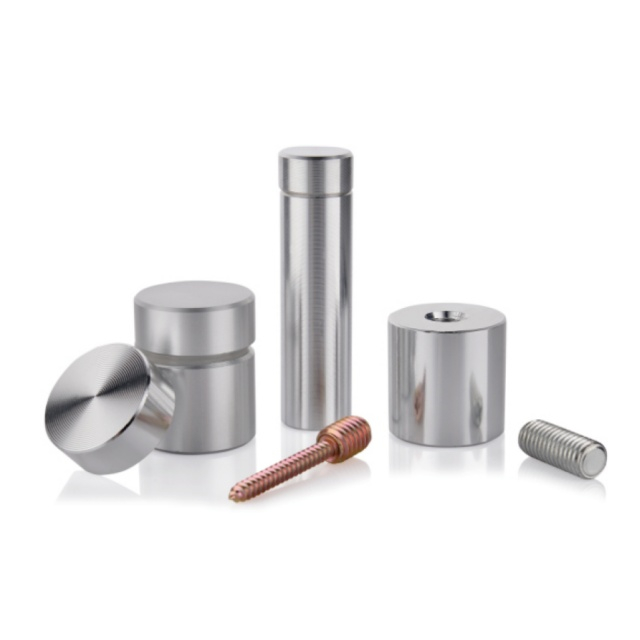

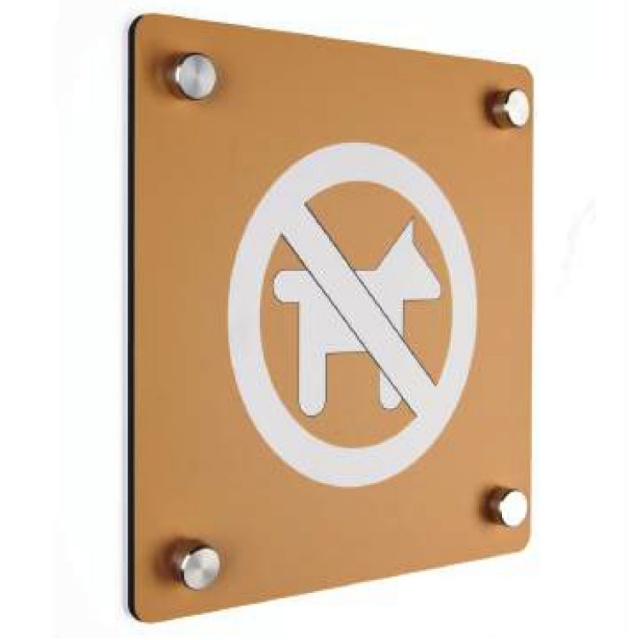

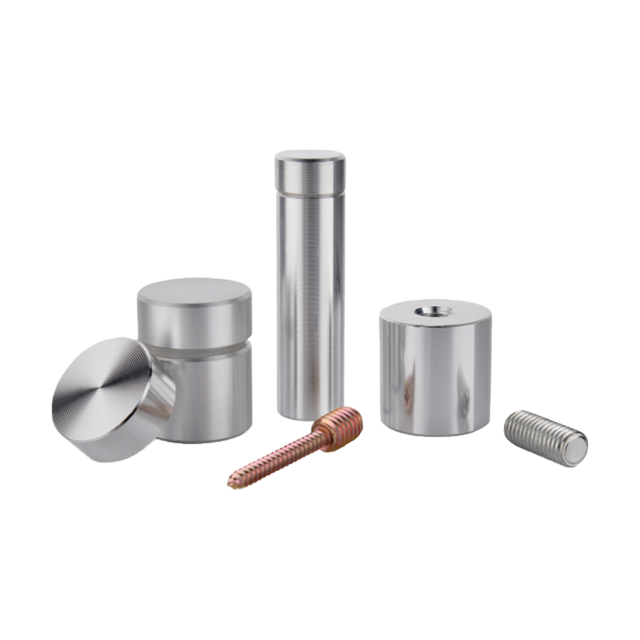

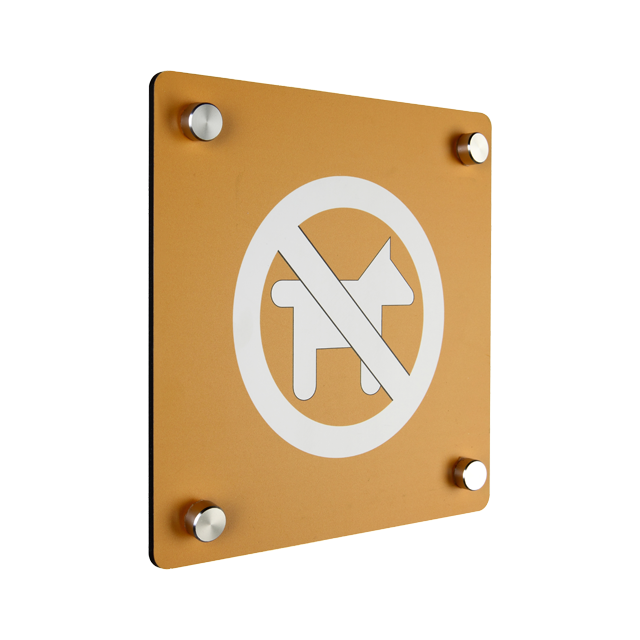

Our Aluminium Caps & Spacer Sign Standoffs provide a sleek, modern way to mount signage, glass panels and acrylic displays.

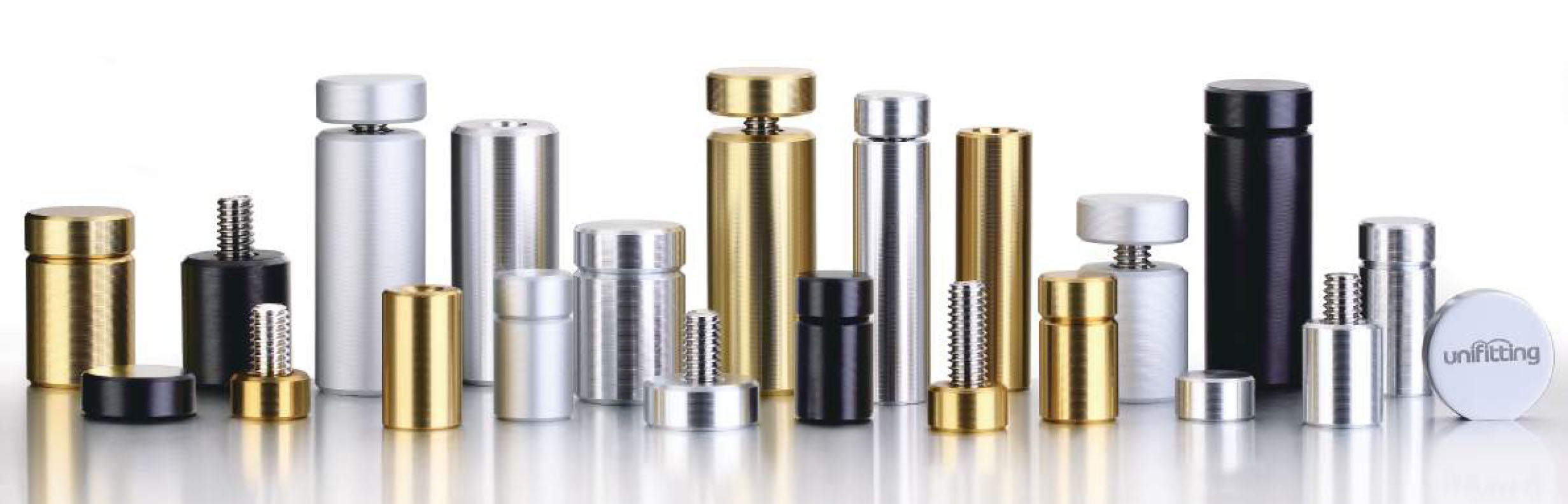

Made from 100% aluminium with durable anodized finishes in NA, BK, ST or YE, they create a "floating" effect with spacer lengths from 19 mm to 50.7 mm and diameters of 15.5 mm or 22.2 mm.
100% Aluminium Construction – Lightweight, strong & corrosion-resistant
Multiple Diameters – φ15.5 / φ22.2 mm options
Spacer Lengths – 19 / 25.4 / 50.4 / 25.5 / 50.7 mm for varied "float" distances

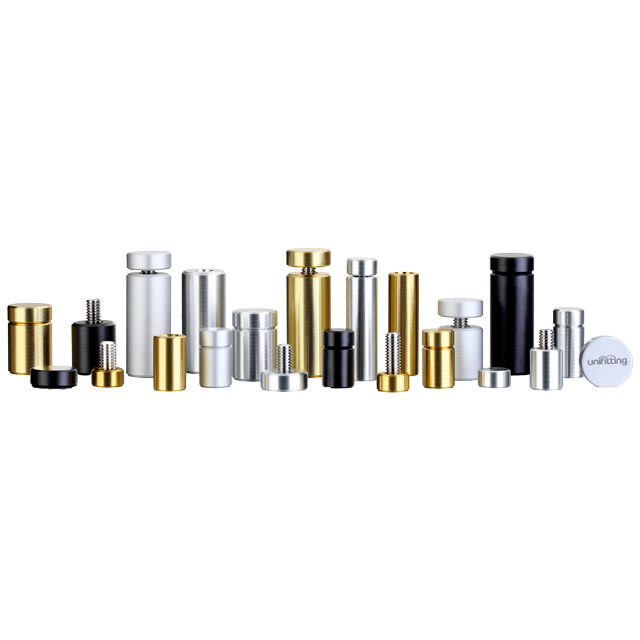

Anodized Finishes – NA, BK, ST, YE for lasting color & scratch resistance

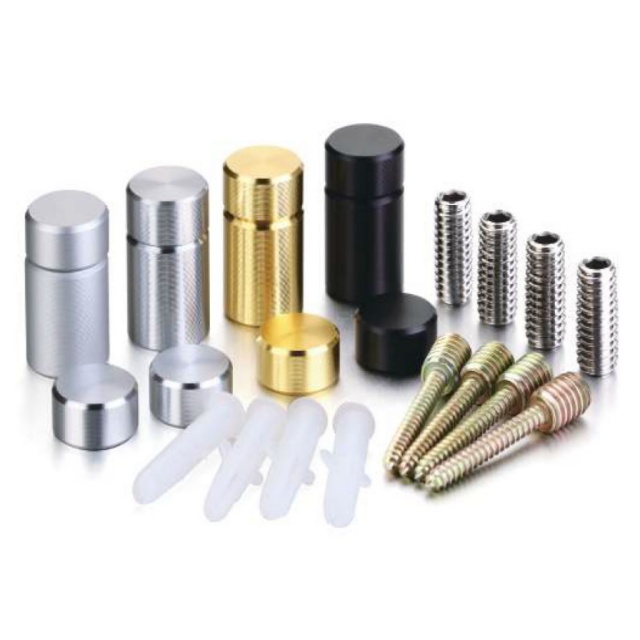

Easy Installation – Includes matching screws, anchors and threaded posts

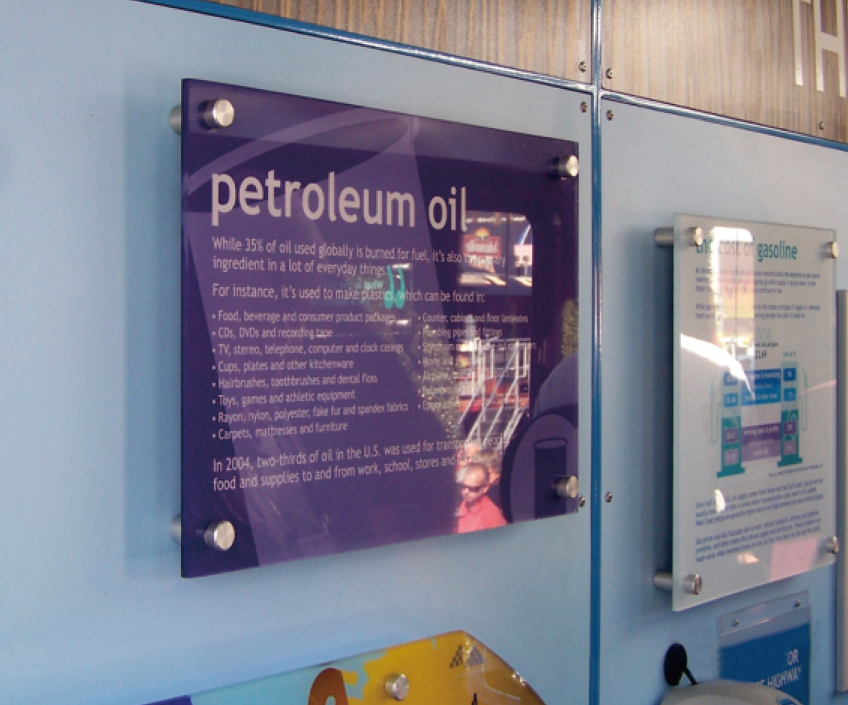

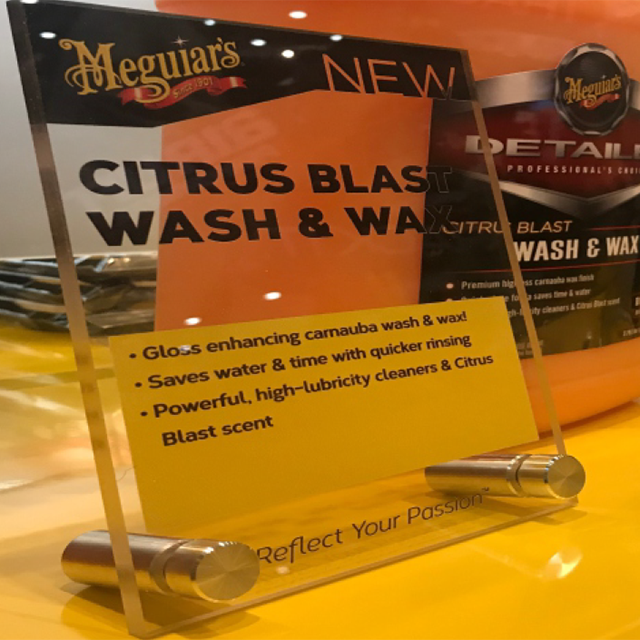

Indoor & Outdoor Use – Perfect for lobbies, showrooms, galleries, retail signage
| Item No. | Diameter (φ) | Cap Thickness | Spacer | Screw Pole Size | Max Panel Thickness |
|---|---|---|---|---|---|
| CA-1619D | 15.5 mm | 8 mm | 19 mm | Dia. 8 mm L 12.5 mm | 7 mm |
| CA-1625D | 15.5 mm | 8 mm | 25.4 mm | Dia. 8 mm L 19 mm | 10 mm |
| CA-1650D | 15.5 mm | 8 mm | 50.4 mm | Dia. 8 mm L 25 mm | 12 mm |
| CA-2225D | 22.2 mm | 8 mm | 25.5 mm | Dia. 8 mm L 25 mm | 10 mm |
| CA-2251D | 22.2 mm | 8 mm | 50.7 mm | Dia. 10 mm L 25 mm | 12 mm |

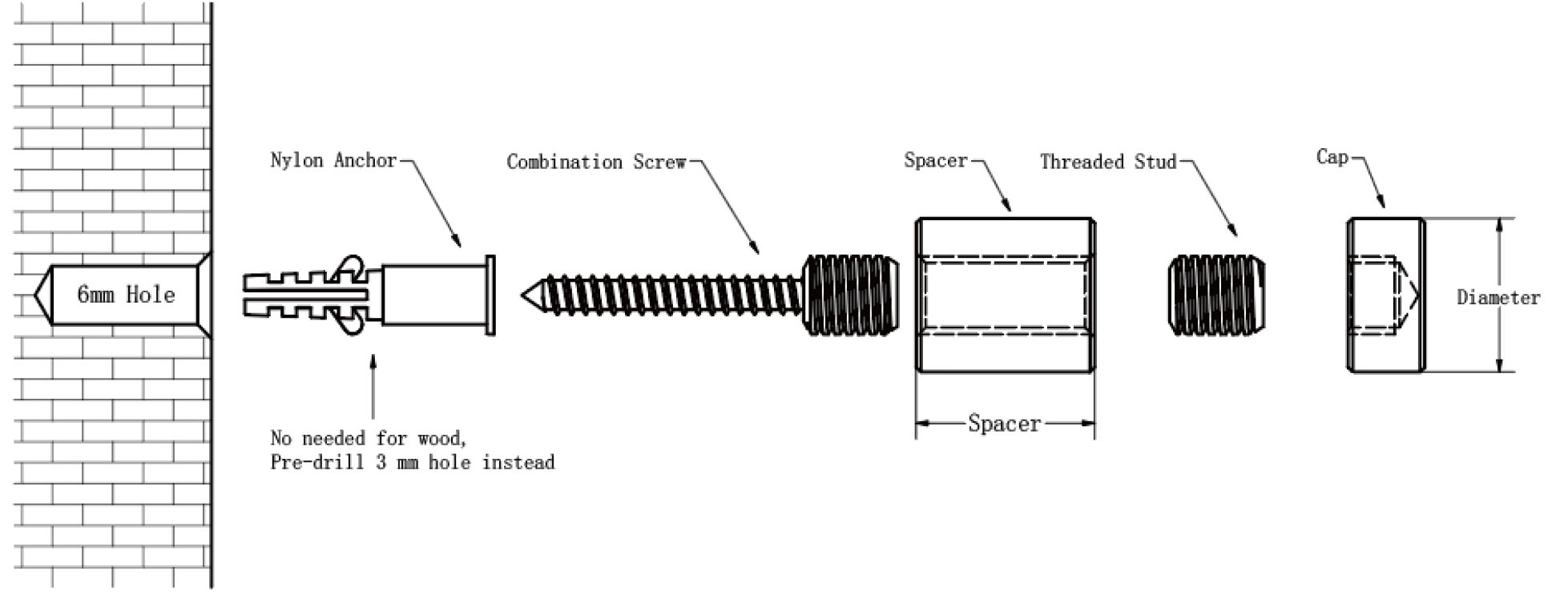

Mark and drill holes on the mounting surface.
Insert the plastic anchor and screw the threaded post into it.
Place your signage or panel onto the threaded posts.
Slide on the aluminium spacer barrel, then screw on the cap until snug.
Verify alignment and tighten caps.
Q: What thickness of panel can I use?
A: Supports panels from 2 mm up to 12 mm thick. Ensure hole diameter is 1–2 mm larger than standoff barrel.
Q: Can I use these standoffs outdoors?
A: Yes. The anodized aluminium finish provides excellent corrosion resistance for outdoor applications.
Q: How do I choose the right spacer length?
A: Spacer lengths from 19 mm to 50.7 mm allow you to create different floating effects—select based on desired gap between panel and wall.
Contact our sales team today to custom-order your Aluminium Sign Standoffs and enjoy volume discounts plus fast lead times.
