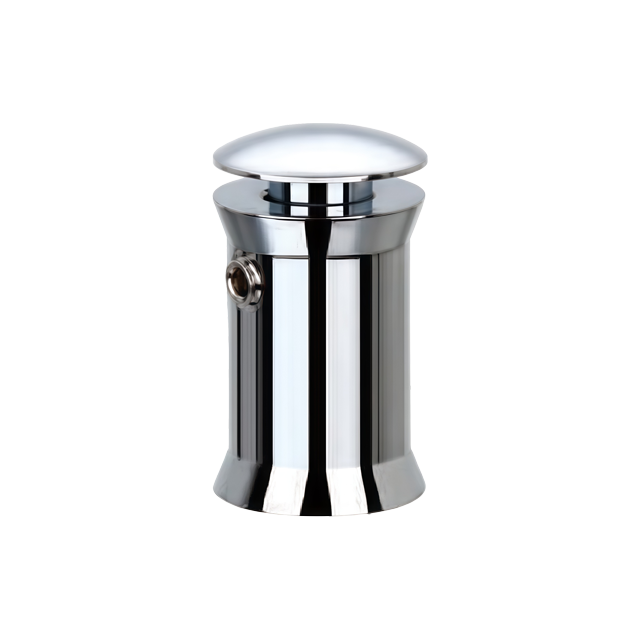

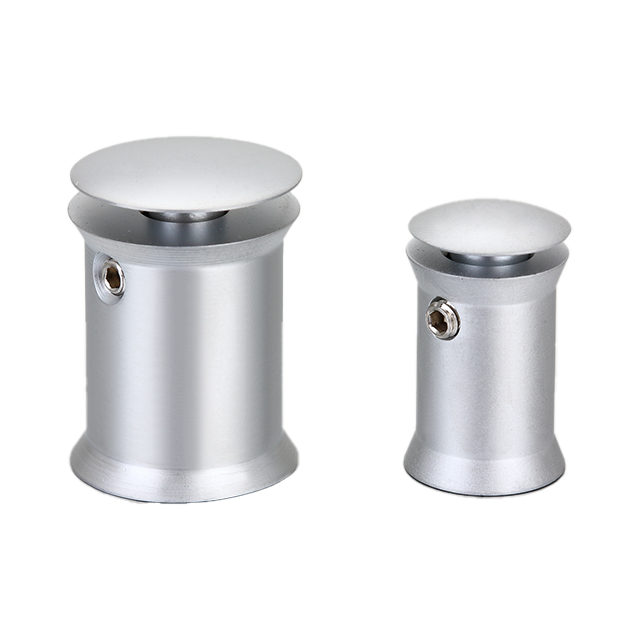

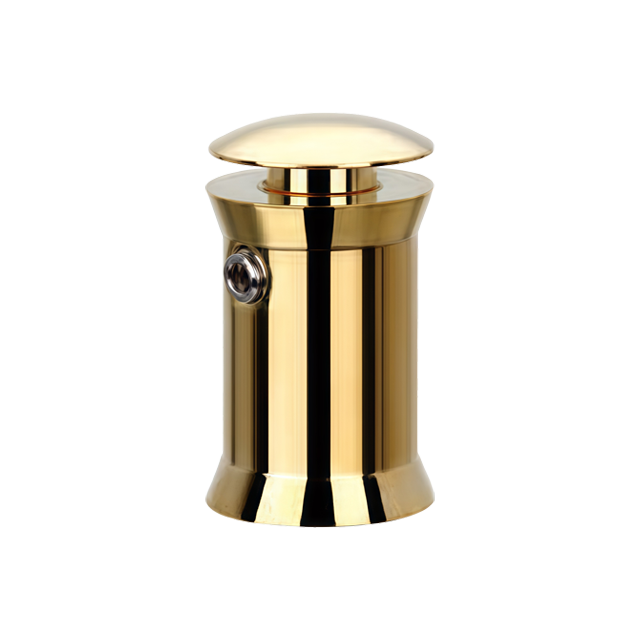

CH Series-Brass Dome Top Sign Standoffs With Lateral Lock

A dome top wall mounted brass standoff, Use a lateral lock to mount standoffs on the wall for anti-thief function.
Availability:
  • CH-1623/2327

  • UNIFITTING

Description:


The CH Series is a special design with lateral lock system for anti-thief function. The head of the standoff is in a elegant dome shape. It's made from high quality brass by forge technoloty.It is available in 3 colors(Polished Chrome, Satin Silver, Polish Gold)


Specification:


Item No.Color&MaterialDiameterCap ThicknessSpacerSrew Pole SizeHex ScrewBottom Hole SizeMax Panel   Thickness
CH-1623SS-Satin Silver CP-Polished Chrome16mm2.5mm23mmDia.   8mm L20mmM45mm12   mm
CH-232723mm2mm27mmDia.   8mm L24mmM45mm14   mm
