CN1313/1319/1325/1340/1919/1925/2525
UNIFITTING
Description:

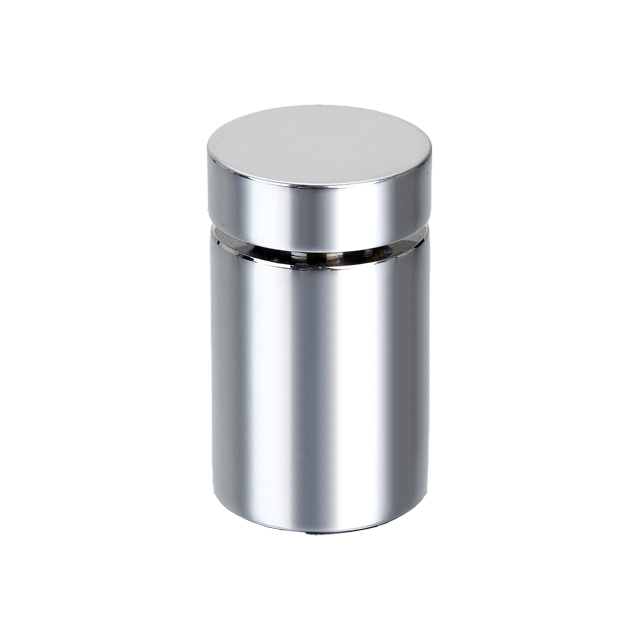

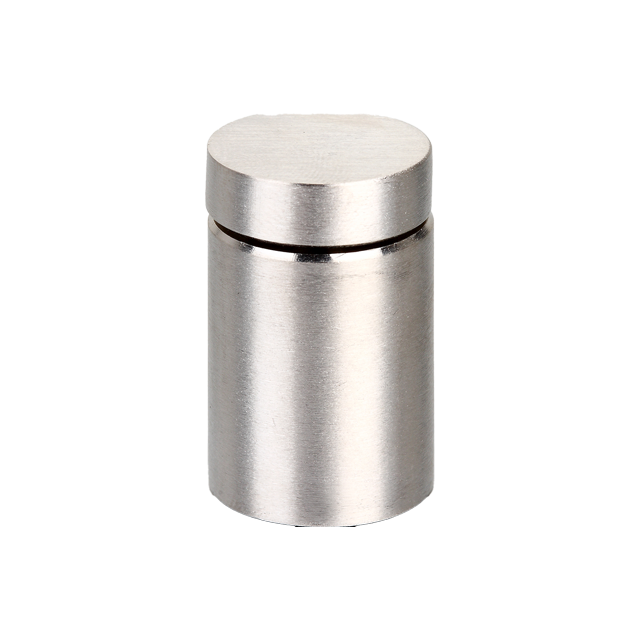

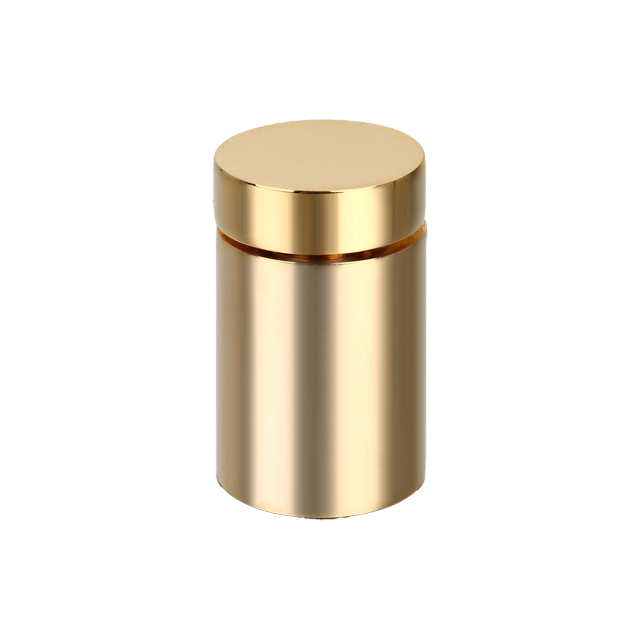

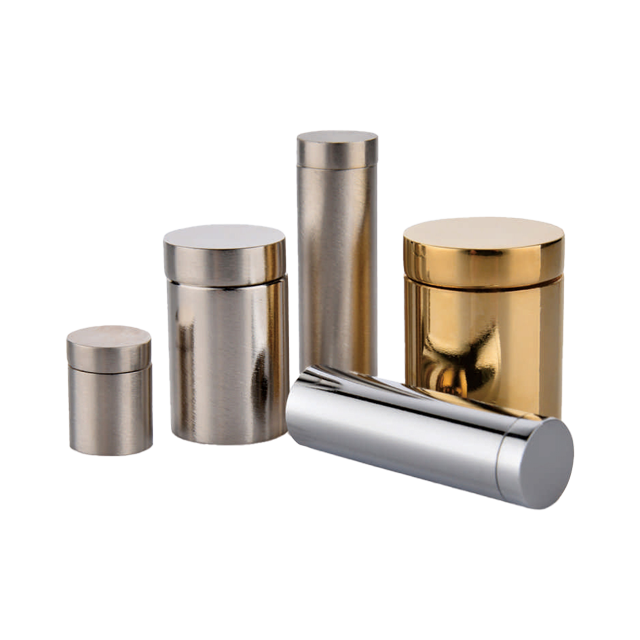

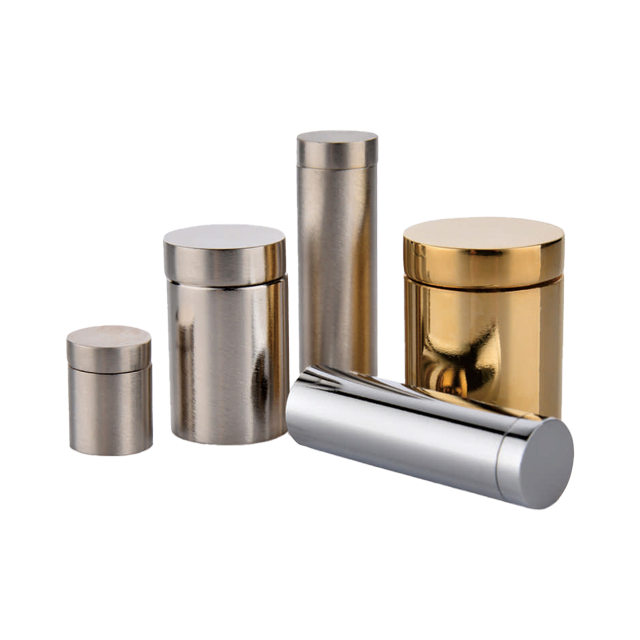

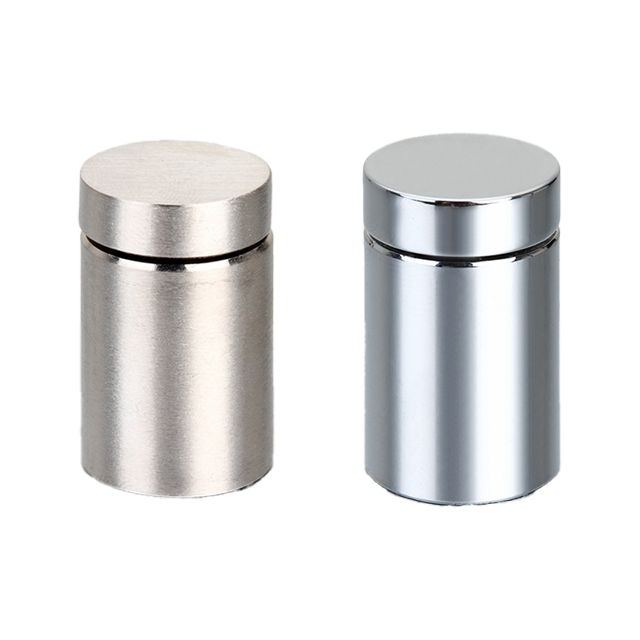

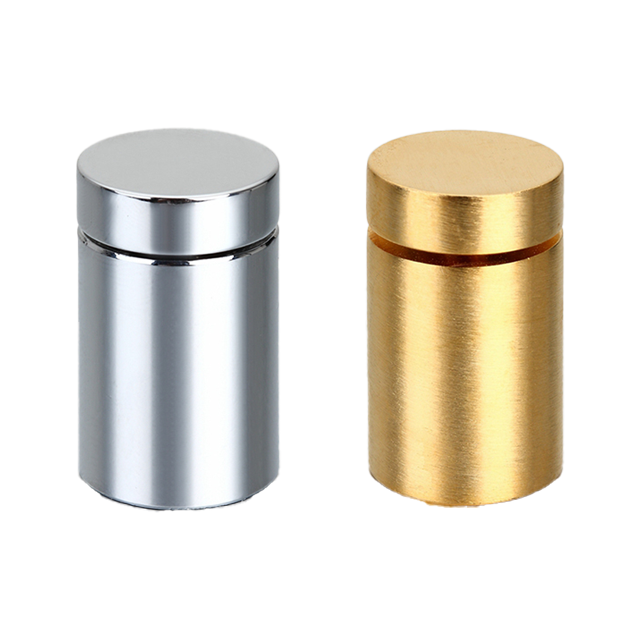

Flat top sign standoffs is a sign Support for displaying.It's made from hign quality solid brass rod. The different finish of glass hardware holder is by high quality plating used for indoor usage.
Specification:
| Item No. | Color&Material | Diameter | Cap Thickness | Height | Screw Pole Size | Bottom Hole Size | Panel Thickness |
| CN-1313 | CP-Polished Chrome SS-Satin Silver SC-Sation Chrome BG-Polished Gold | 13mm | 4mm | 13mm | Dia. 8mm L12mm | 4mm | 4~6mm |
| CN-1319 | 13mm | 4mm | 19mm | Dia.8mm L16.5mm | 4mm | 2~10mm | |
| CN-1325 | 13mm | 4mm | 25mm | Dia.8mm L22.5mm | 4mm | 1~16mm | |
| CN-1340 | 13mm | 4mm | 40mm | Dia. 8mm L35mm | 4mm | 1~24mm | |
| CN-1919 | 19mm | 6mm | 19mm | Dia.10mm L16.5mm | 5mm | 2~8mm | |
| CN-1925 | 19mm | 6mm | 25mm | Dia.10mm L22.5mm | 5mm | 2~14mm | |
| CN-2519 | 25mm | 6mm | 19mm | Dia.10mm L16.5mm | 5mm | 2~8mm | |
| CN-2525 | 25mm | 6mm | 25mm | Dia.10mm L22.5mm | 5mm | 2~14mm |
