WD-1925
Unifitting
WD-1925
![]() | Premium Wooden Sign Standoffs |
Elevate Your Visuals with Warmth & Depth. |

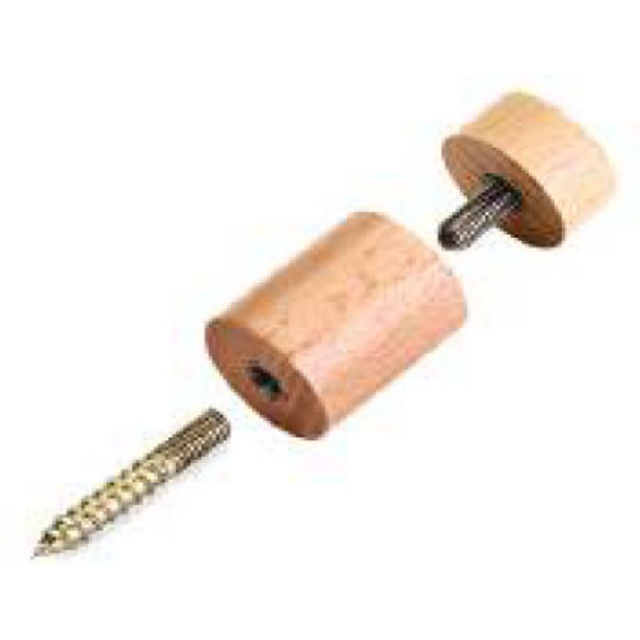

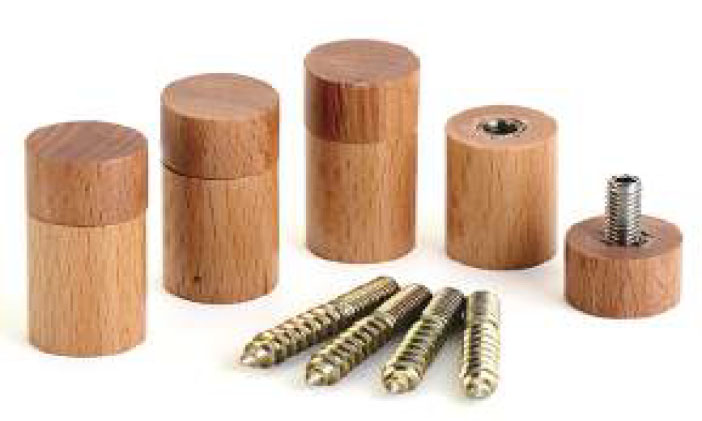

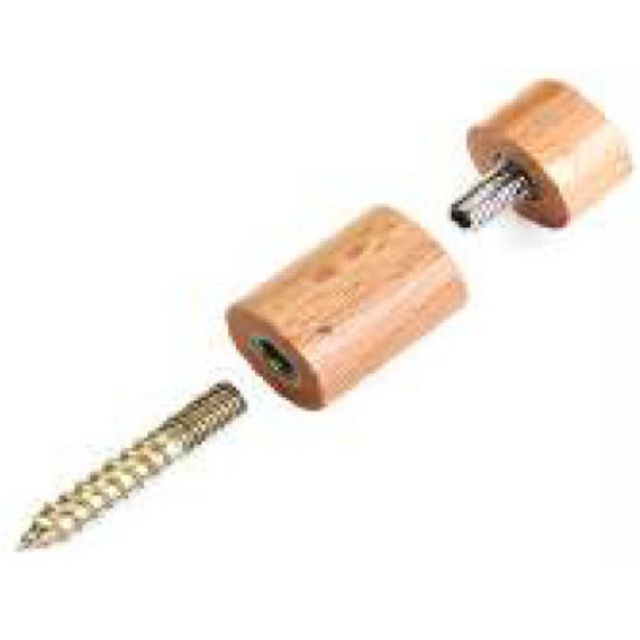

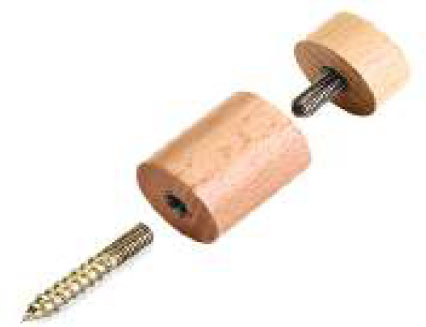

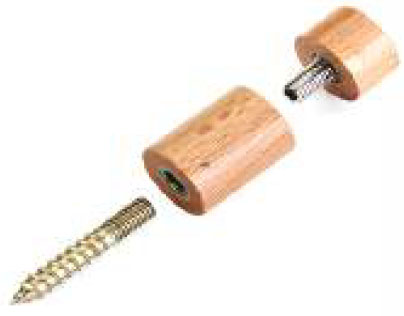

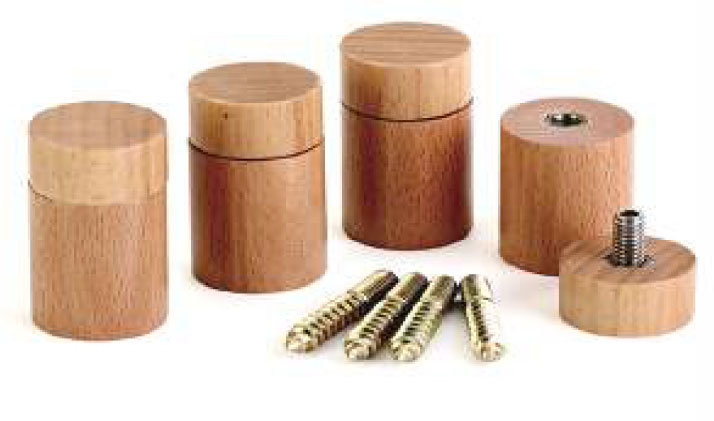

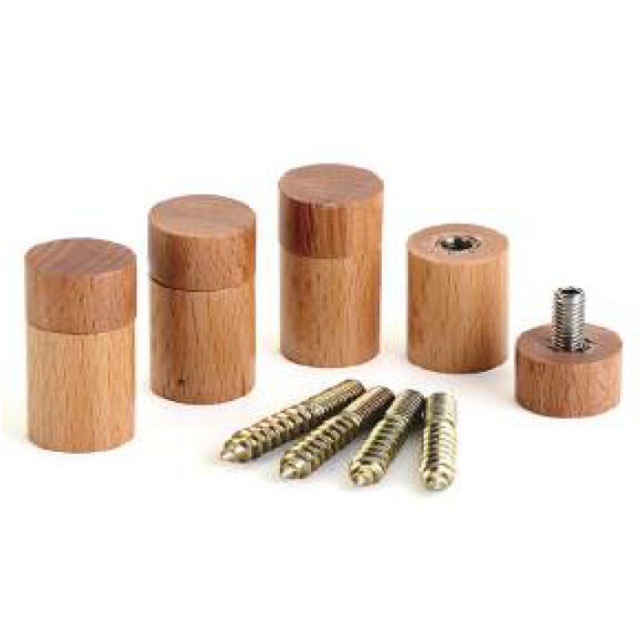

Our Beech Wood Sign Standoffs are the perfect solution for mounting acrylic signs, photo panels, menu boards, and lightboxes with a refined, floating look. Each set includes precision‑machined wooden caps and matching expansion anchors for a secure, clutter‑free installation. |
|
|
|
|
|
Item No. | ![]() | ![]() |
WD-1925 | WD-2530 | |
Material | Solid Beech Wood | Solid Beech Wood |
Diameter | 19mm | 25mm |
Cap Thickness | 12mm | 12mm |
Spacer | 25mm | 30mm |
Screw Length | 15mm | 15mm |
Hanger Bolt | M6 x 38 | M6 x 38 |
Panel Hole | 6mm | 6mm |
Panel Thickness | 0-10mm | 0-10mm |
Max Load(2pcs) | 4kg | 4kg |
1.Drill Hole: Use a 6 mm masonry bit for wall or wood base. |
2.Insert Anchor: Gently tap the expansion anchor flush with the surface. |

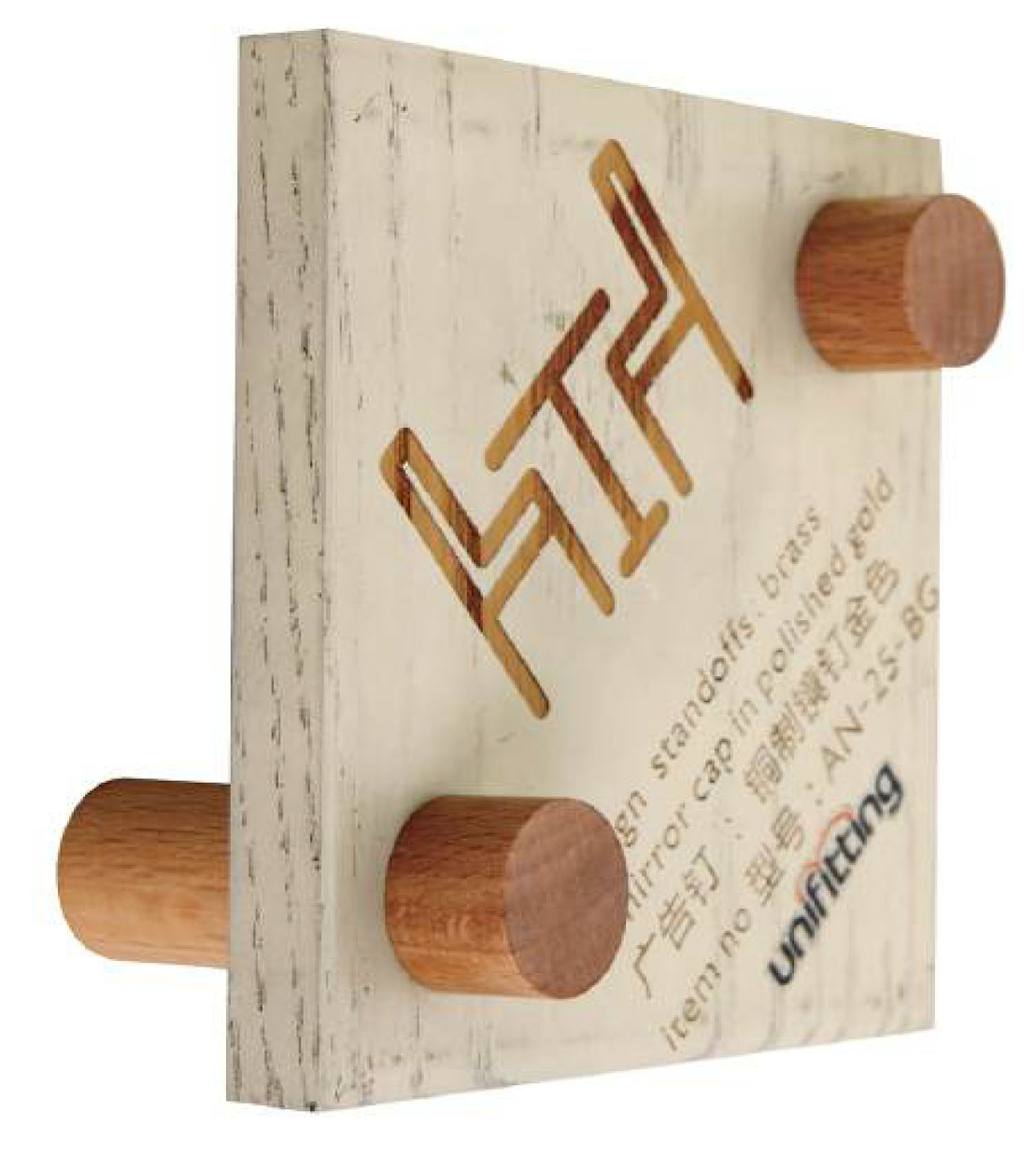

3.Mount Cap & Panel: Thread the inner cap, position your panel, then snap on the wooden cap. |
4.Enjoy Your Floating Display: Adjust panel orientation if needed—no tools required! |
|
|
|
|
|
|
|
